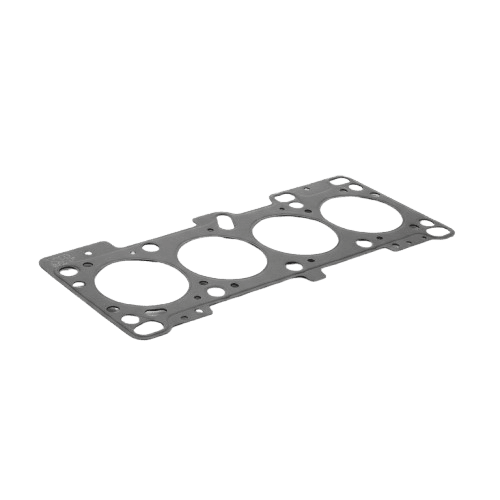

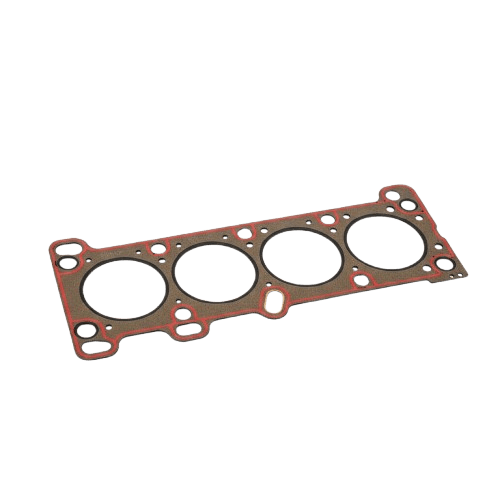

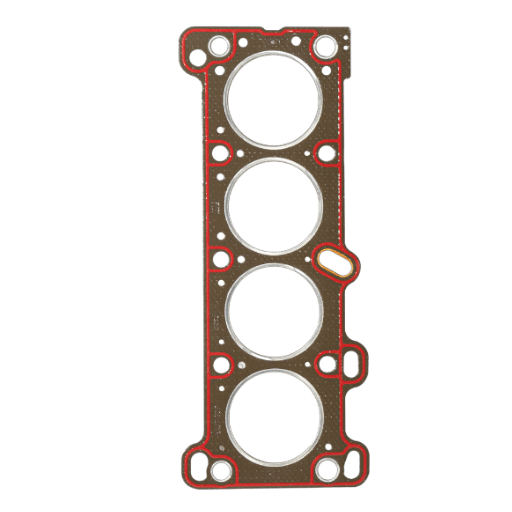

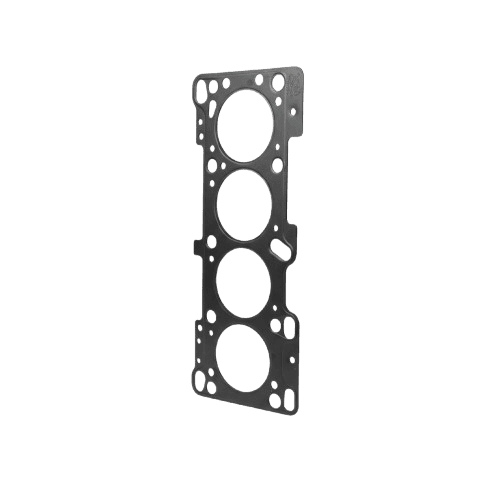

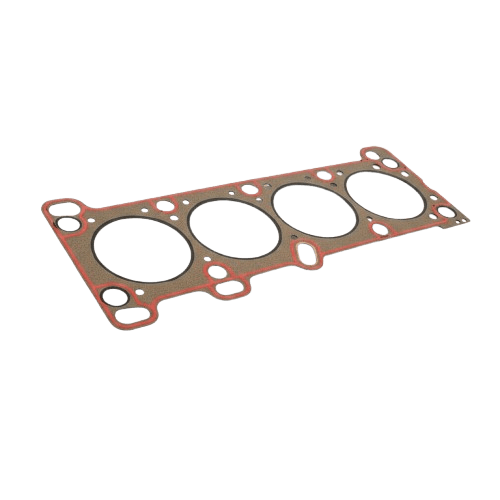

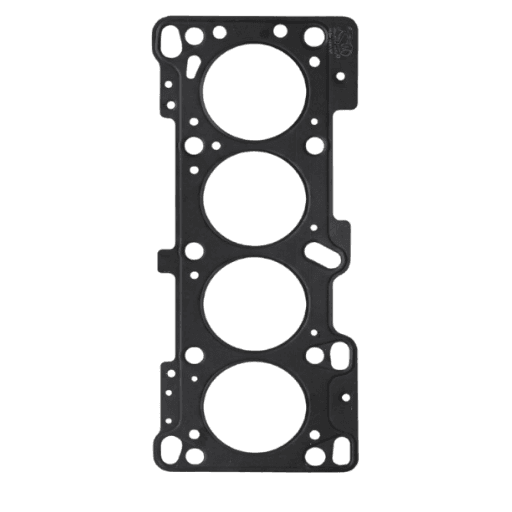

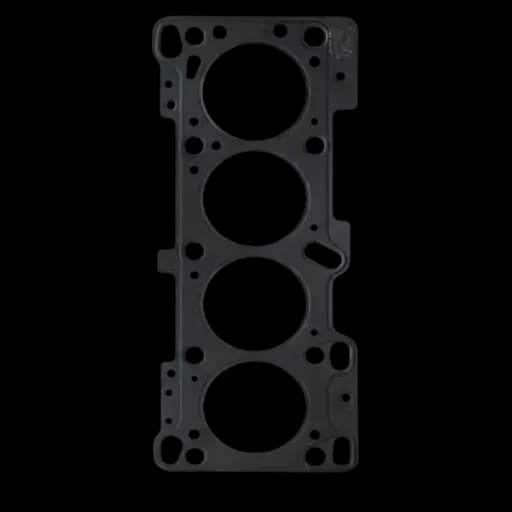

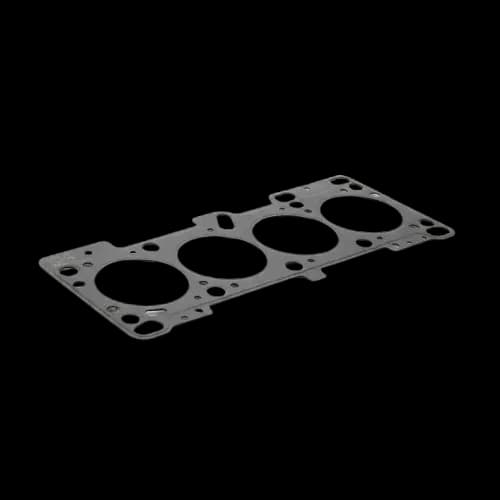

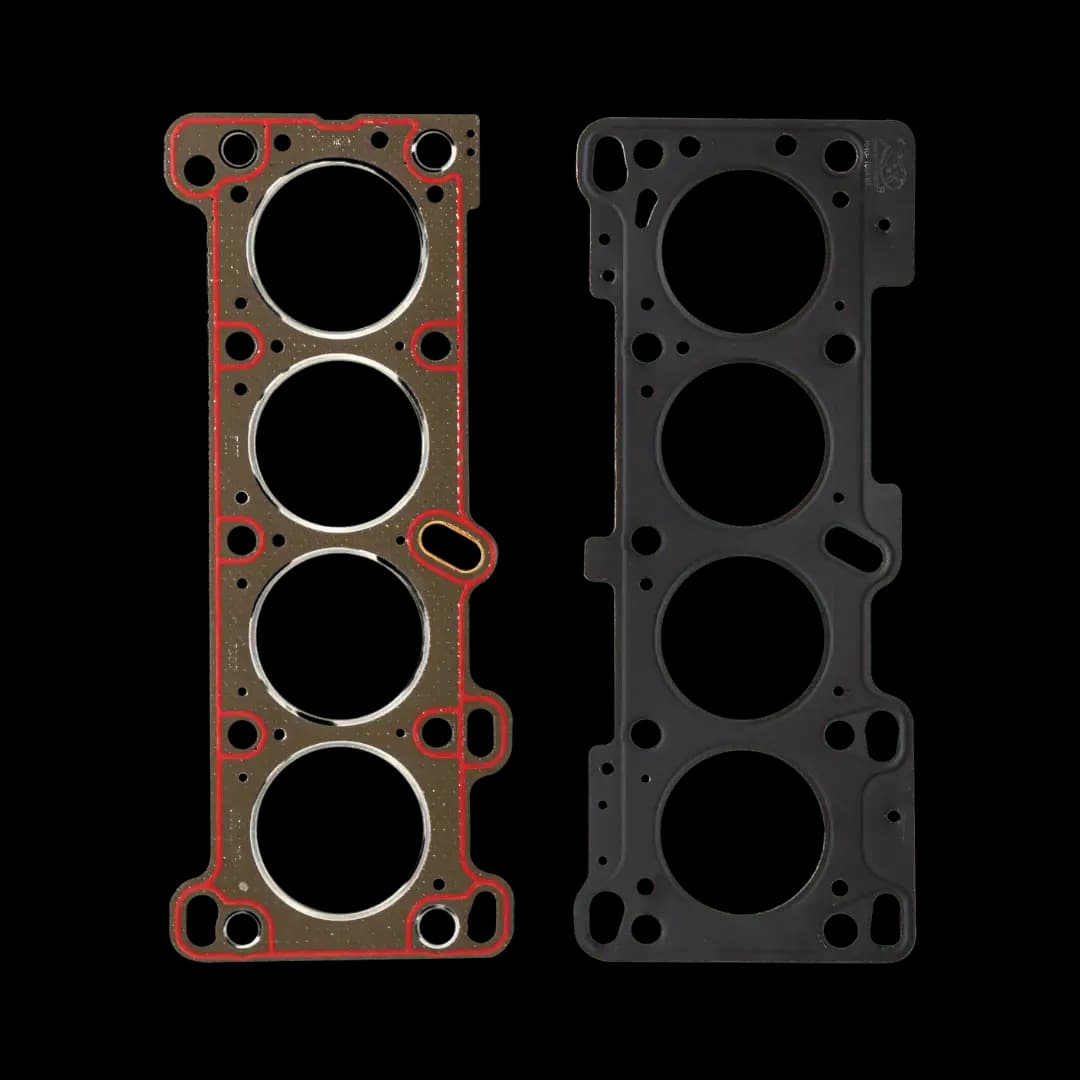

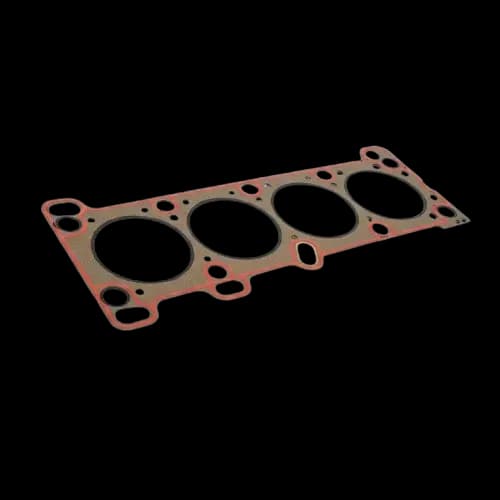

Kia Motors Cylinder Head Gasket

Structure: 3-Layer, Asbestos-Free

Base Materials: Hybrid Composition of Mineral Fiber and German NBR Latex

Inner Layer: German Rust-Proof Tin-Plated Galvanized Steel

Thermal Resistance: Up to 400°C

Sealing: Full WACKER Silicone Coating to Prevent Sticking to the Cylinder Head and Facilitate Replacement

Manufacturing Process: Synchronized Twice Oven Curing Method

Coating: Full German WACKER Silicone Coating

Chemical Resistance: Resistant to Engine Oil, Antifreeze, and Radiator Water

Combustion Ring: German Fireproof Combustion Ring

Certifications: European Quality Standards Approved

Supervision & License: Manufactured under License and Supervision of DAkkS GERMANY

The Kia Motors Cylinder Head Gasket by KIEK Auto Parts is engineered and manufactured utilizing advanced technologies and premium German raw materials. Featuring a 3-layer asbestos-free structure, a hybrid composition of mineral fiber and German NBR latex, and a rust-proof tin-plated galvanized inner layer, this gasket delivers reliable and stable performance under diverse operational conditions. All these attributes combined make it an ideal choice for precise, high-durability sealing.

Main Functions of the Cylinder Head Gasket:

• Complete Sealing Between Block & Head: Prevents leaks of combustion gases, engine oil, and coolant.
• Thermal Endurance up to 400°C: Withstands extreme heat without structural distortion or degradation.
• Mechanical & Chemical Stress Resistance: Defends against intense pressures and chemical properties generated by engine operation.
• Maintaining Compression & Fluid Integrity: Prevents fluid mixing in vehicles operating under heavy-duty or high-temperature conditions. By executing these functions precisely, the cylinder head gasket enhances fuel efficiency, stabilizes engine performance, and extends overall engine lifespan.

Supplementary Documentation: Guide & Maintenance

Despite its high quality and advanced manufacturing technology (such as a 3-layer structure, German raw materials, and a synchronized twice-oven curing process), the head gasket is a consumable component exposed to intense heat and pressure. The following guidelines help maximize its service life and simplify determining replacement intervals:

1. Preventive Maintenance (Engine Systems):

• Regular Fluid Level Checks: Routinely check engine oil and coolant levels according to the vehicle manufacturer’s guidelines. An abnormal drop in fluid levels can be an early warning sign.
• Use Quality Fluids: Ensure you use high-quality engine oil and coolant/antifreeze that comply with Kia vehicle standards. Substandard fluids can damage the gasket.
• Engine Temperature Control: Prevent engine overheating. Any cooling system malfunction (radiator, thermostat, water pump, cooling fan) leading to engine overheating can rapidly burn out the head gasket.

2. Symptoms of Failure & Replacement Timing:

Head gaskets rarely fail without clear indicators. Failure typically results from aging, cooling system malfunctions, or severe overheating. Common symptoms warning of a blown head gasket include:

• Unexplained loss of radiator coolant without external leaks.
• Air bubbles in the radiator expansion tank while the engine is running (indicating combustion gases entering the cooling system).
• Oil present in the radiator or expansion tank (indicating oil leaking into the cooling system).
• Coolant present in engine oil (milky or frothy oil – indicating water leaking into the lubrication system).
• Thick, persistent white smoke from the exhaust (indicating coolant entering and burning in the combustion chamber).
• Noticeable loss of engine power, rough idling, or engine vibration.
• Excessive pressure in the cooling system (rigid radiator hoses).
• Frequent and severe engine overheating.

If any of these symptoms appear, have the vehicle inspected by a specialist immediately. Delaying the replacement of a blown gasket can lead to more severe and costly engine damage.

3. Cylinder Head Gasket Replacement:

Replacing a head gasket is a highly specialized procedure requiring technical knowledge, precision tools (such as a torque wrench), and adequate experience. This task must never be performed by unqualified personnel. General steps include:

• Disconnecting auxiliary engine components (manifolds, belts, wiring, etc.).
• Removing head bolts following the correct sequence and method.
• Separating the cylinder head from the engine block.
• Meticulously cleaning mating surfaces of all contamination, old gasket residue, or deposits (ensuring absolute surface flatness is critical).
• Placing the new gasket in position (paying attention to proper installation orientation).
• Installing the cylinder head and torquing bolts according to the exact sequence and specifications provided by the manufacturer (new head bolts are typically required).
• Reinstalling auxiliary components.
• Filling the cooling system and oil reservoir with fresh, high-quality fluids.
• Bleeding the cooling system thoroughly.
• Starting the engine to monitor performance, check temperatures, and verify zero leaks.

Important Installation Notes:

• Always use a high-quality, vehicle-standard gasket (such as the presented product).
• Block and head surfaces must be completely clean and free of warpage. If necessary, have the cylinder head checked and resurfaced by a specialist.
• Most manufacturers recommend replacing head bolts during a gasket swap because these are typically "torque-to-yield" stretch bolts that lose their elasticity after a single use.
• Strictly follow the manufacturer's repair manual for bolt tightening sequences and torque specs to prevent improper sealing or head warpage.

Gasket Repair:

Generally, a head gasket is an unrepairable component. While "head gasket sealer liquids" on the market may temporarily mask very minor leaks, they are not recommended as permanent solutions and can cause clogs in the cooling system or other issues. The best and only standard solution for a blown head gasket is replacement with a new, high-quality part.
