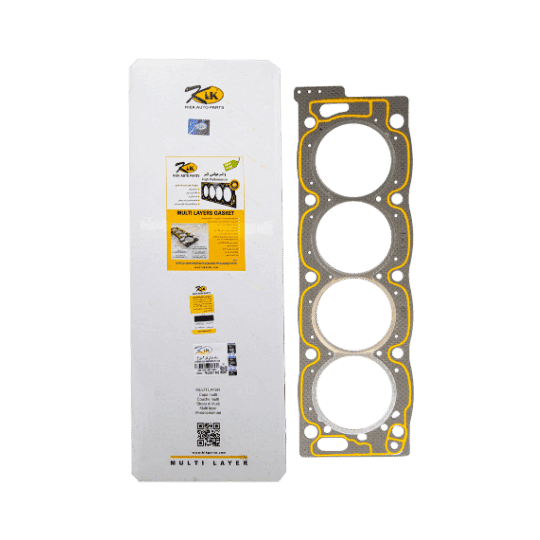

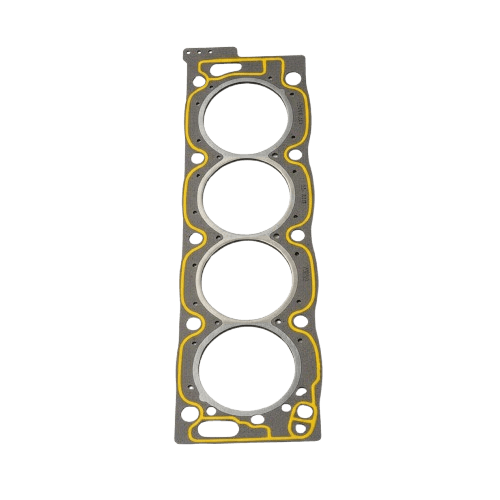

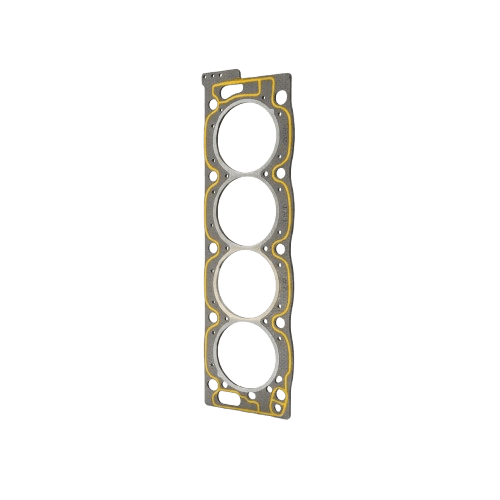

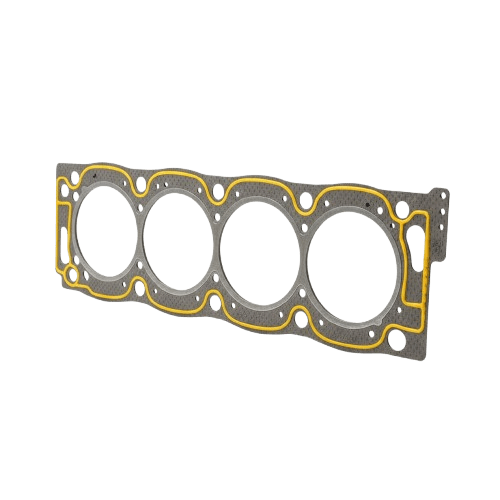

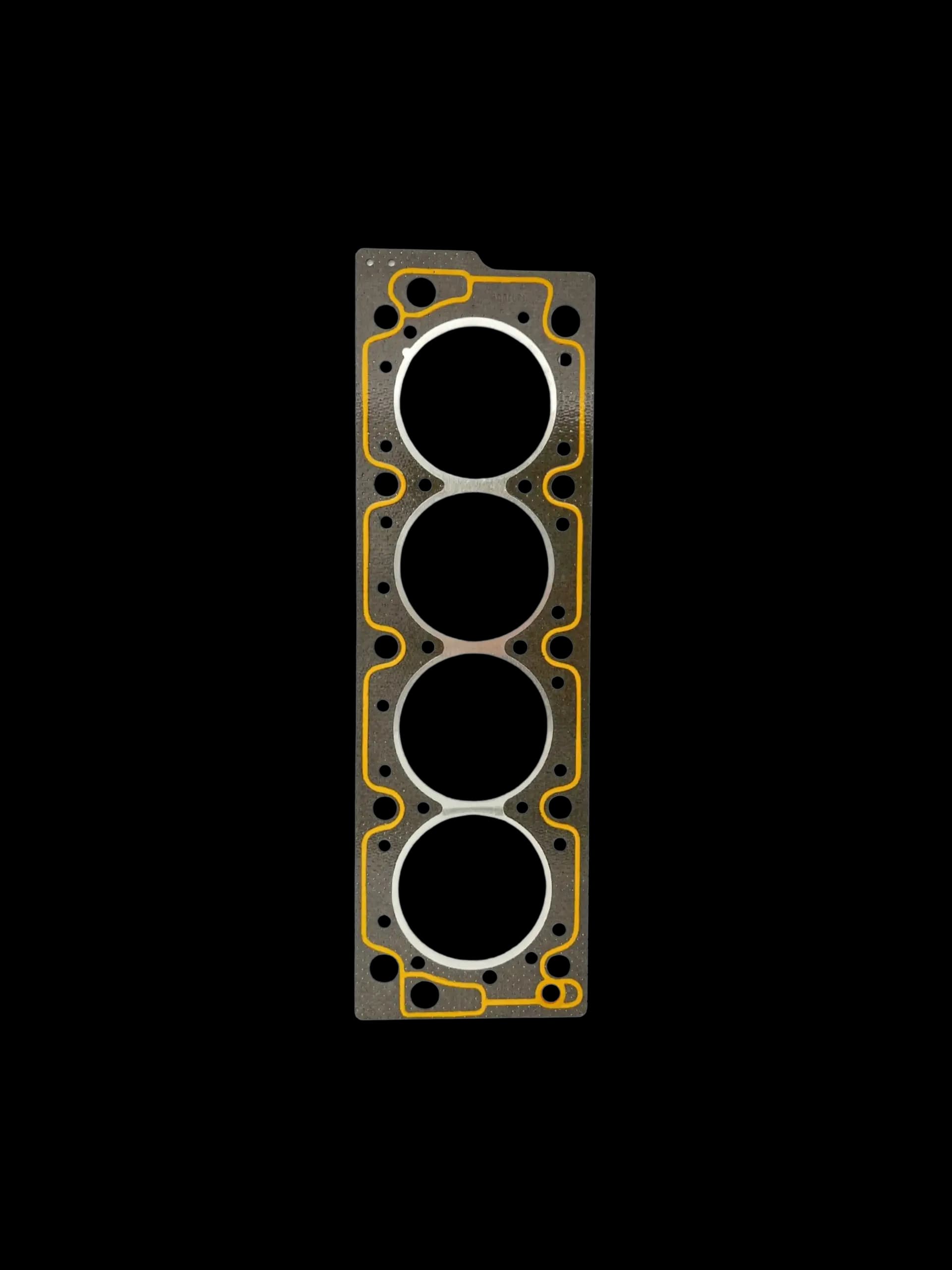

Multi-Layer Cylinder Head Gasket

• Structure: 5-Layer Asbestos-Free
• Base Materials: Mineral Fiber + German NBR Latex
• Inner Layer: Rust-proof Tin-Plated Galvanized Steel, Heat Resistant up to 400°C
• Sealing: Full German WACKER Silicone Coating
• Manufacturing Process: Synchronized Twice Oven Curing
• Combustion Ring: Fireproof, with European Certifications
• Chemical Resistance: Resistant to Engine Oil, Antifreeze, and Radiator Water
• Standards: Manufactured under License and Supervision of DAkkS GERMANY
• Recommended Installation Torque: 120 N·m (12 kN·m)

The MULTILAYERS Cylinder Head Gasket is a specialized product from Kiek Auto Parts, engineered to ensure complete and durable sealing in internal combustion engines. Thanks to its engineered 5-layer structure, this gasket offers a longer service life and higher resistance to extreme temperatures, pressure, and degradation compared to similar market products. A key highlight is its thermal resistance up to approximately 400°C, ensuring it remains dimensionally stable and retains its sealing properties under severe operating conditions. Additionally, the inclusion of a fireproof combustion ring enhances durability against direct flames and high-temperature combustion gases. This combination of advanced design and robust materials makes the MULTILAYERS gasket a reliable choice for mechanics and automakers alike.

Main Functions:

• Reliable Sealing Between Head and Engine Block: Prevents leaks of combustion gases, engine coolant, and oil into or out of the cylinder chamber.
• Withstanding High Pressure and Temperature: The 5-layer structure with a heat-resistant inner layer (up to 400°C) guarantees stable performance in high-pressure engines.
• Preventing System Contamination: Prevents foreign substances from mixing with oil or antifreeze by maintaining a precise seal throughout the engine's service life.
• Creating a Safe & Controlled Combustion Environment: The fireproof combustion ring preserves energy concentration and uniformity during fuel ignition, increasing engine efficiency.
• Reducing Thermal & Mechanical Stress: By evenly distributing pressure and heat, the MULTILAYERS gasket prevents cylinder head cracking or warping.
• Extending Engine Life & Reducing Major Overhauls: Superior build quality and environmental resistance make this gasket a durable and cost-effective long-term choice.

Installation Guide:

1. Clean and thoroughly dry the contact surfaces of both the cylinder head and engine block prior to installation.
2. Do NOT use extra gasket glue or silicone, as the gasket features a full WACKER silicone coating.
3. Place the gasket properly in position, ensuring there is no misalignment.
4. Tighten the cylinder head bolts in a cross pattern across multiple stages.
5. Final Installation Torque: 120 N·m (12 kN·m).
6. The use of a calibrated torque wrench is strongly recommended.

Important Notes (Practical, Technical & Warnings):

• Never use gasket sealant on these products unless specified in the product manual.
• Low-quality engine oil or antifreeze increases the risk of corrosion or swelling of the internal fiber layers.
• If the engine overheats even once, inspect the head gasket and cylinder head thoroughly.
• Ensure the thermostat, cooling fan, water pump, and radiator are fully operational; otherwise, installing a new gasket will be ineffective.
• Always use a new gasket when reassembling. Reusing a used gasket—even if it appears undamaged—is strictly not recommended.
• After installation, allow the engine to idle up to full operating temperature without load (Idle warm-up), then recheck the bolt torque if specified by the vehicle manufacturer.
• If installing a multi-layer steel (MLS) gasket, the engine block surface must be flat and polished; otherwise, proper sealing cannot be achieved.

Maintenance & Periodic Inspection:

• Regularly check engine oil and coolant levels.
• Take any signs of oil or water leaks around the cylinder head seam seriously.
• If abnormal engine temperature spikes or steam appears from under the hood, turn off the engine immediately for inspection.
• Recheck cylinder head bolt torque during periodic maintenance services.

Important Notices:

• Using counterfeit or inferior gaskets can cause serious damage to the cylinder head and engine block.
• Due to its specialized structure, the MULTILAYERS gasket must only be installed according to the manufacturer's guidelines.
• Avoid reinstalling a used gasket.
• For optimal performance, always use manufacturer-recommended engine oil and antifreeze.
