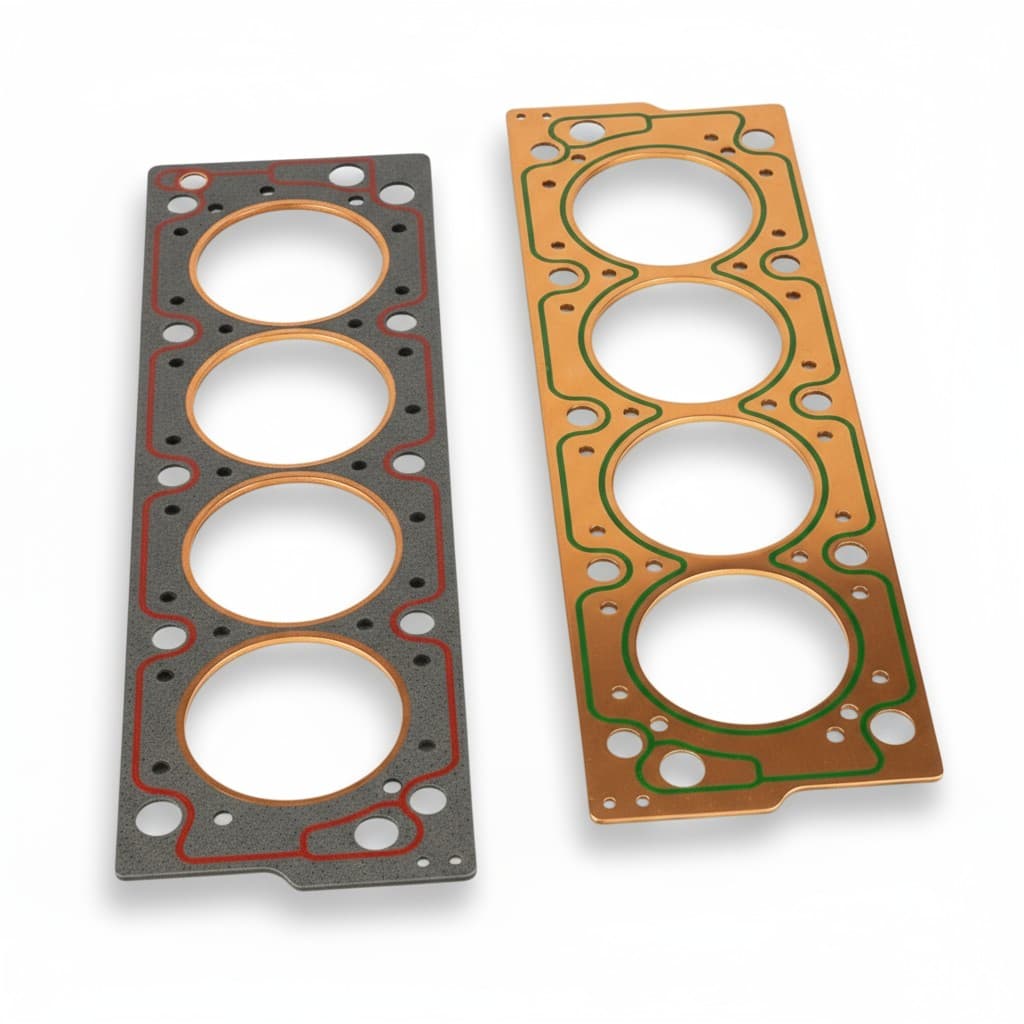

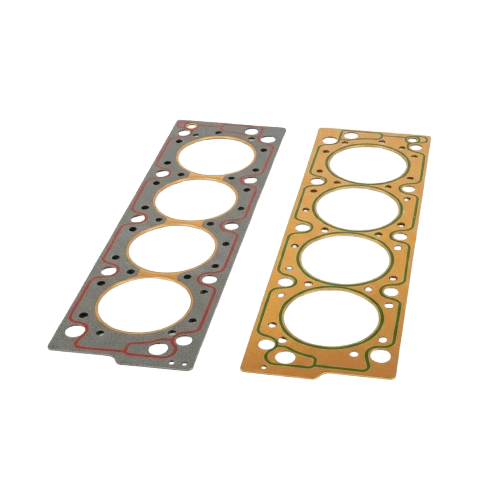

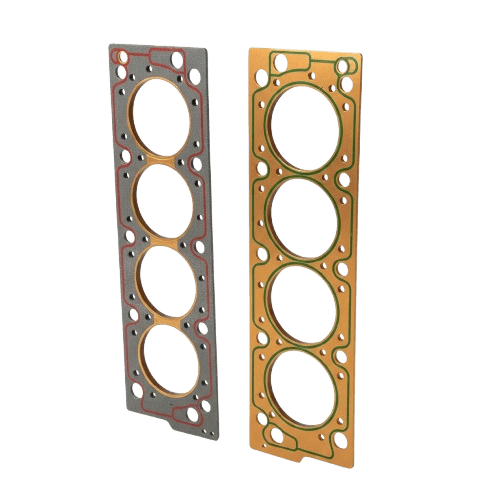

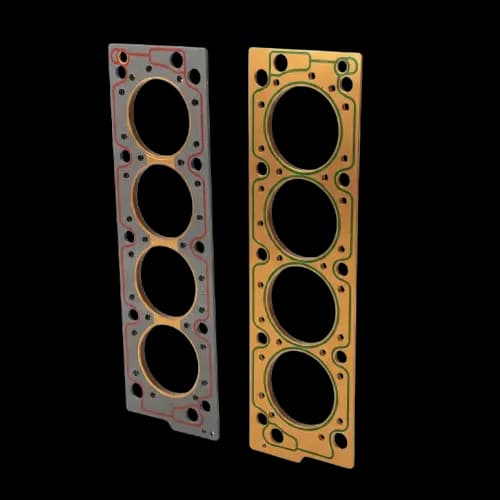

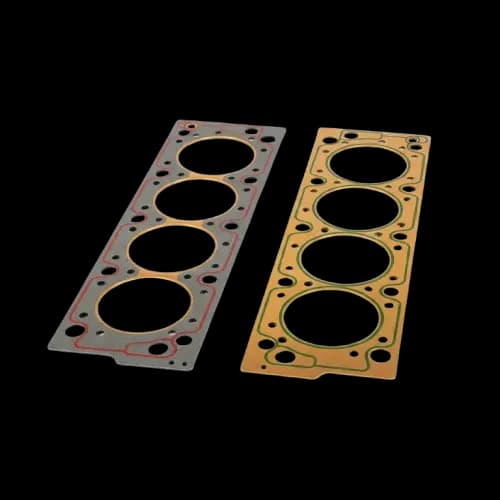

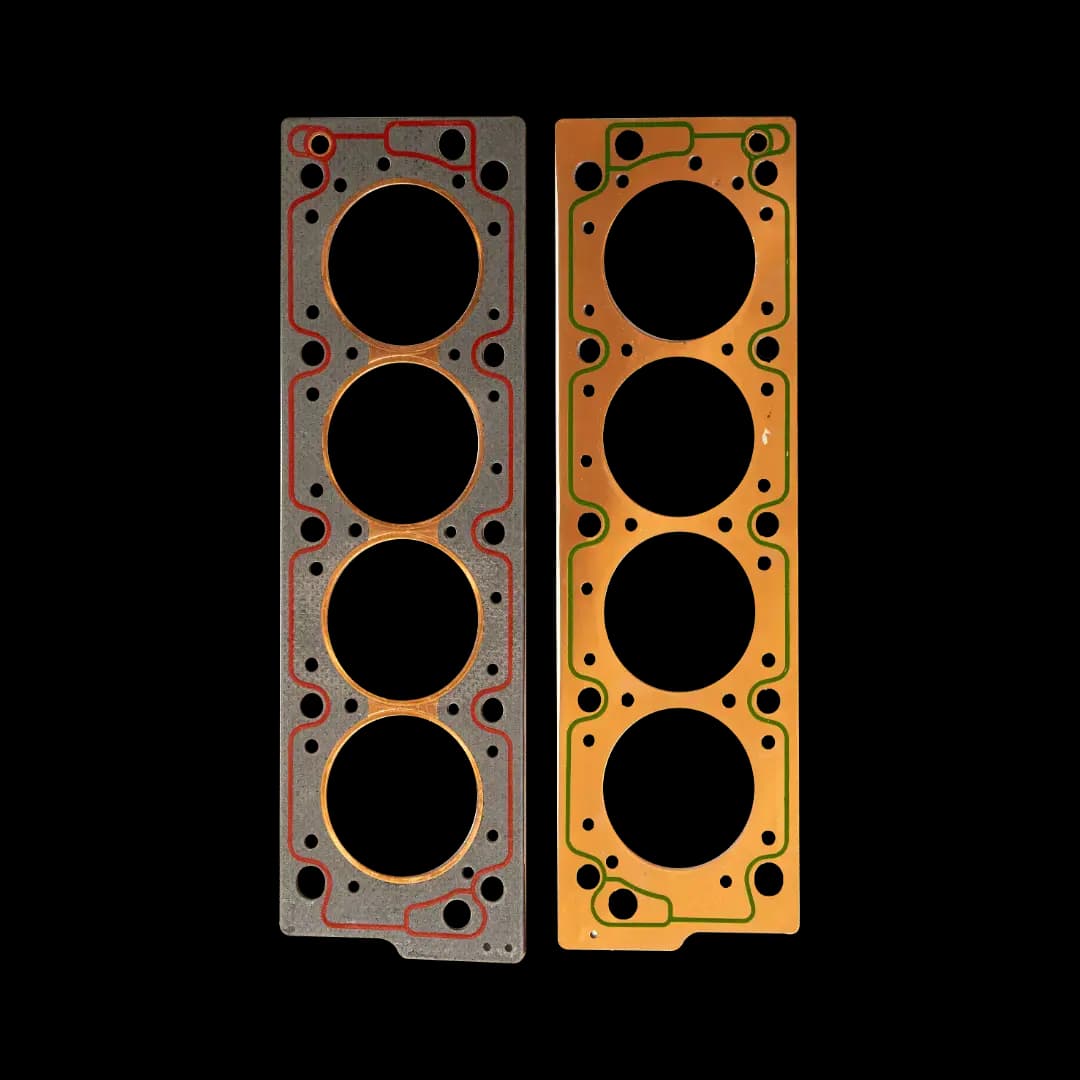

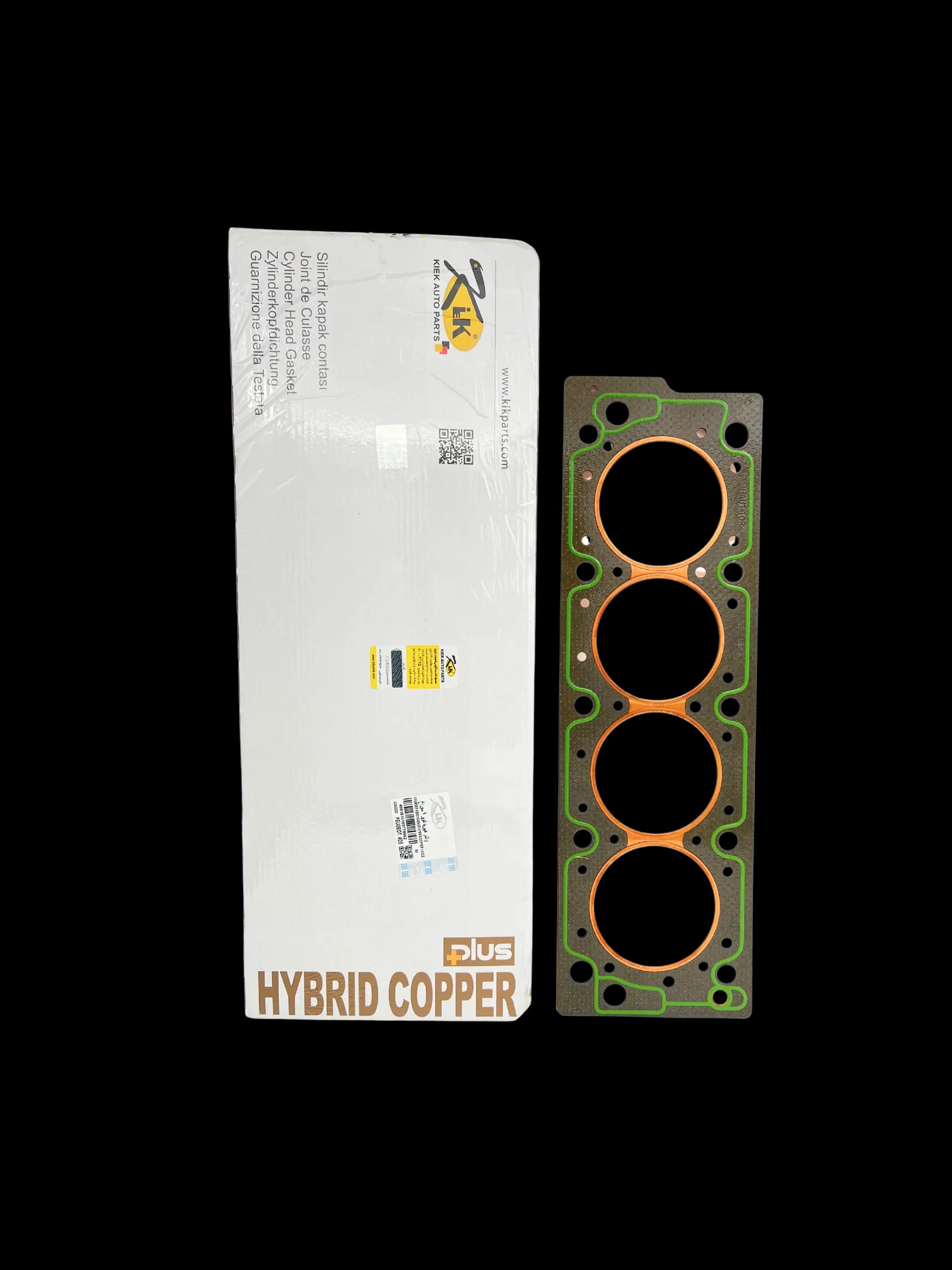

Hybrid Copper Cylinder Head Gasket

• Structure: 4-Layer (3 Composite Asbestos-Free Layers + 1 Full Solid-Copper Reinforcement Layer)
• Base Materials: Mineral Fiber + German NBR Latex
• Inner Layer: Rust-proof Tin-Plated Galvanized Steel, Heat Resistant up to 400°C
• Sealing: German WACKER Silicone Coating (4-Stage Synchronized Baking)
• Special Feature: Full Solid-Copper Layer + Combustion Ring Reinforced with Copper Bridges
• Chemical Resistance: Resistant to Engine Oil, Antifreeze, and Radiator Water
• Application: Specifically Engineered for Bi-Fuel Engines (Petrol/CNG & Petrol/LPG)
• Standards: Manufactured under License and Supervision of DAkkS GERMANY
• Recommended Installation Torque: 10 N·m higher than standard gasket torque

The Hybrid Copper Cylinder Head Gasket is a new generation of head gaskets specially engineered for dual-fuel engines (CNG/Petrol and LPG/Petrol). Featuring a full solid-copper layer and a combustion ring structure reinforced with copper bridges, this design seamlessly combines the key advantages of both metal and composite/soft gaskets: exceptional high-thermal resistance along with precise, resilient sealing capability. Its hybrid construction—consisting of three standard asbestos-free layers plus a reinforcing full-copper layer—ensures reliable sealing and stable performance even under extreme engine conditions. The Hybrid Copper gasket is the ultimate choice for engines exposed to intense temperatures and mechanical stresses.

Main Functions:

• Complete & Reliable Sealing for Dual-Fuel Engines: Prevents gas, antifreeze, and oil leaks under high operational pressures thanks to its full copper layer and reinforced structure.
• High Thermal Resistance up to 400°C: Tailored to handle extreme combustion temperatures generated by gaseous fuels.
• Enhanced Engine Performance Stability: The fireproof, copper-bridge reinforced combustion ring ensures a more uniform explosion in the cylinder.
• Preventing Cylinder Head Distortion & Warping: Its standard 3-layer structure and 4-stage silicone curing process prevent illegal/uneven pressure distribution on engine components.
• Fewer Overhauls & Extended Engine Life: Premium build quality conforming to European standards guarantees high durability and reduced maintenance needs.

Installation Guide:

• Special Notice: Due to the unique hybrid construction, cylinder head bolts must be torqued 10 N·m higher than the standard specification.

1. Thoroughly clean and degrease all contact surfaces on both the cylinder head and engine block.
2. Carefully position the gasket to ensure perfect alignment without skewing.
3. Tighten the cylinder head bolts in a cross pattern across multiple stages.
4. The use of a calibrated torque wrench is mandatory.

Recommendations to Extend Gasket Service Life:

• Use antifreeze/coolant meeting Long Life OAT specifications.
• Flush the entire cooling system thoroughly when replacing the gasket.
• Check oil and coolant levels weekly on high-duty or commercial vehicles.
• Schedule periodic inspections at authorized service centers every 20,000 km to verify cylinder head operation and compression pressure.

Important Notices:

• The Hybrid Copper gasket must only be installed by qualified professional mechanics.
• Do NOT attempt to reinstall a used gasket.
• Failure to apply the recommended torque may result in oil or coolant leaks at the head joint.
• For optimal efficiency, always use standard high-quality coolant, engine oil, and fuel.
• Avoid using this gasket in non-dual-fuel (single-fuel) engines.
